For top performance and control combine the stainless steel three phase 3CR80 pump with the NEW Sirio ENERGY SAVING variable speed pump controller. Sirio is an electronic device based on INVERTER TECHNOLOGY that maintains constant system pressure by regulating the starting and speed of the pump.
SIRIO FEATURES
Adjustable pressure set-point (Pmax), i.e. pressure value which will be held constant subject to the capability of the pump.Adjustable start pressure (Pmin).Protection from dry running in case of water supply failure.Automatic reset following shutdown caused by dry running, The restart parameters can also be adjusted.Leak detection function: Small system leaks are indicated on the display panel without interfering with system operation, large leaks can cause frequent pump starts and in this case the Sirio shuts down the pump to prevent damage. This function can be disabled.Alphanumeric backlit display with real time indication of the system pressure and of the pump motor speed.Customizable menu in 5 different languages.LED Indicators: green : network voltage red: alarm/leakage/dry running yellow: pump onRemote connection for the remote supervision of the systeReversal of phase automatic and adjustable by the displayFor correct installation and operation of the Sirio a 2 litre potable pressure vessel is required which is included in the price below Technical Info for Sirio and 3CR |
 |
PQAm60 single phase side suction water pump with Flo Sense 150Ref: PQAm60+FloSense
Price: £175.08 (Including VAT at 17.5%)
Supplied complete with fully automatic pump controller suitable for whole house boosting water supply applications where there is some natural flow under gravity.
The FS150 is a flow sensing switch which activates a pump when water starts to flow under gravity. Suitable for cold or hot water (max 65 celcius), maximum switch load 10 amps. Applications include shower systems (single or twin pump) or water supplies to machines and garden taps. SPECIAL OFFER
Technical Specifications
|
|
|
|
 | PQAm60 single phase side suction water pump with Brio Ref: PQAm60+Brio
Technical information
Supplied complete with fully automatic pump controller suitable for all whole house boosting water supply applications including negative head.
The Brio 2000M features:Adjustable start pressurePump protection from dry runningPressure guageSuitable for showers and other hot water applications (max 65°c)
Brio Dimensions
Length = 195mm to end of thread
Depth = 110mm
Width = 110mm
SPECIAL OFFER
Price: £175.08 (Including VAT at 17.5%)
|
|
|
 | Vertix PE50 Bronze peripheral pump with Brio Ref: Vertix PE50 Brio
Pump Technical Information
Supplied complete with fully automatic pump controller suitable for all whole house boosting water supply applications including negative head.
The Brio 2000M features:Adjustable start pressurePump protection from dry runningPressure guageSuitable for showers and other hot water applications (max 65°c) SPECIAL OFFER
Price: £199.00 (Including VAT at 17.5%)
|
|
|
|
|

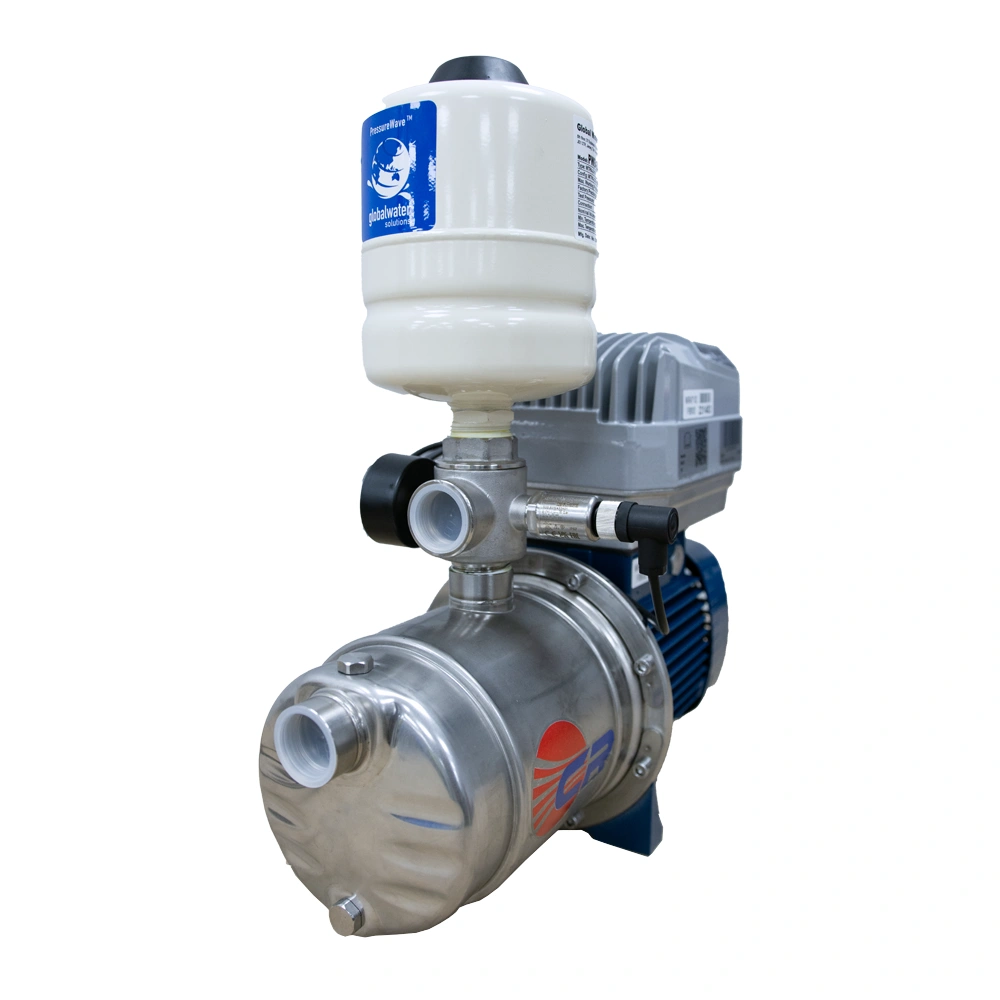

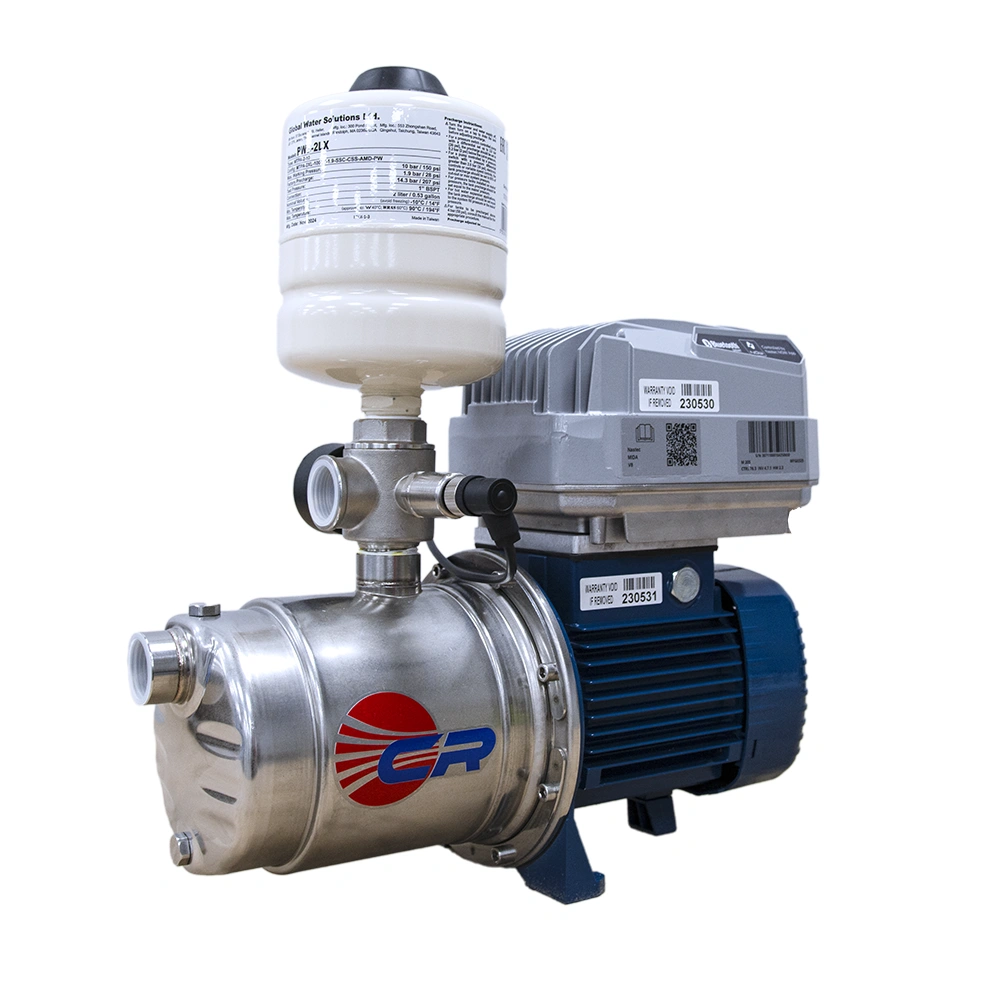

 | 3CR Stainless Steel Pumps with Brio and 2 lt potable expansion vessel. Ref: 3CR with Brio
Pump Installation Instructions
Technical Specifications of Pump
Supplied complete with fully automatic pump controller and 2 lt potable expansion vessel, suitable for all whole house boosting water supply applications including negative head. These pumps are specifically designed for domestic use, having very efficient low power consumption motors and are extremely quiet in operation. Suitable for replacing Aquapower and Superpro pumps.
The Brio 2000M features:Adjustable start pressurePump protection from dry runningPressure guageSuitable for showers and other hot water applications (max 65°c). NOT SUITABLE FOR INSTALLING AFTER THE SHOWER VALVE - USE 3CRm80 WITH FS150 FLOW SWITCH INSTEAD SPECIAL OFFER ON TWIN PUMPS 15% OFF USUAL PRICE OF £660 INC VAT
Price: £330.00 (Including VAT at 17.5%)
|
|
|
|
|
| 4CR Stainless Steel Pumps with Brio and 2lt potable expansion vessel. Ref: 4CR with Brio
Pump Installation Instructions
Technical Specifications
Supplied complete with fully automatic pump controller and 2 lt potable expansion vessel, suitable for all whole house boosting water supply applications including negative head. These pumps are specifically designed for domestic use, having very efficient low power consumption motors and are extremely quiet in operation.Suitable for replacing Aquapower and Superpro pumps.
The Brio 2000M features:Adjustable start pressurePump protection from dry runningPressure guageSuitable for showers and other hot water applications (max 65°c). NOT SUITABLE FOR INSTALLING AFTER THE SHOWER VALVE - USE 3CRm80 WITH FS150 FLOW SWITCH INSTEAD SPECIAL OFFER
Price: £346.00 (Including VAT at 17.5%)
|
|
|
|
|
|
|
 | Hydrofresh Ref: 24-60-100CL-24SF
Technical Information
HYDROFRESH systems are AUTOMATIC PRESSURIZATION UNITS utilizing a variety of water pumps depending on your exact requirements. They are supplied complete with tank (wih rubber membrane, for alimentary use). These systems provide sufficient water pressure for modern domestic appliances, ensuring sufficient water supply for all user outlets.
PUMP INSTALLATION AND APPLICATIONS
THESE SMALL AUTOMATIC BOOSTER SYSTEMS ARE SUITABLE FOR DISTRIBUTING WATER UNDER PRESSURE IN RESIDENTIAL HOUSING AND SMALL SCALE AGRICULTURAL APPLICATIONS. THEIR SPECIAL OPERATING SYSTEM MAKES THEM AN APPROPRIATE SOLUTION IN ALL CASES WHERE WATER FLOW RATES DO NOT ENSURE SUITABLE OPERATING PRESSURES.
HYDROFRESH units are designed to meet specific requirements for:
reliability
low purchase and operating cost
safety
ease of installation (all units are supplied pre-assembled, complete with all electrical and water connections ready for installation).
PLEASE CALL US ON 0845 130 3300 to discuss your exact requirements or email sales@pumpexpress.co.uk
|
|
|
|
|
